How To Articles › 360 Turntables
Understand gearbox play, avoid directional backlash, and configure Visere Captura settings for more repeatable 360° captures.
Applies to: Pictomic turntables using planetary gearboxes | Software: Visere Captura
For the highest 360° shooting rotational precision, keep the turntable rotating in the same direction throughout setup and capture, and enable “Lock turntable when idle” in Control Turntable within Visere Captura.
1. Which Photography Turntables Use a Planetary Gearbox?
Most Pictomic photography turntables use a planetary gearbox to increase torque while keeping the drive system compact. This is an efficient way to move larger or heavier products without requiring a much larger motor.
There are two important exceptions:
- Silver Jewelry does not use a gearbox. Its platform is mounted directly on the motor stem.
- Platinum Large (Mark II) does not use a gearbox. It uses a metal belt drive system instead.
Why this matters: Gearbox-based systems can introduce a small amount of rotational play. Direct-drive and belt-drive systems behave differently.

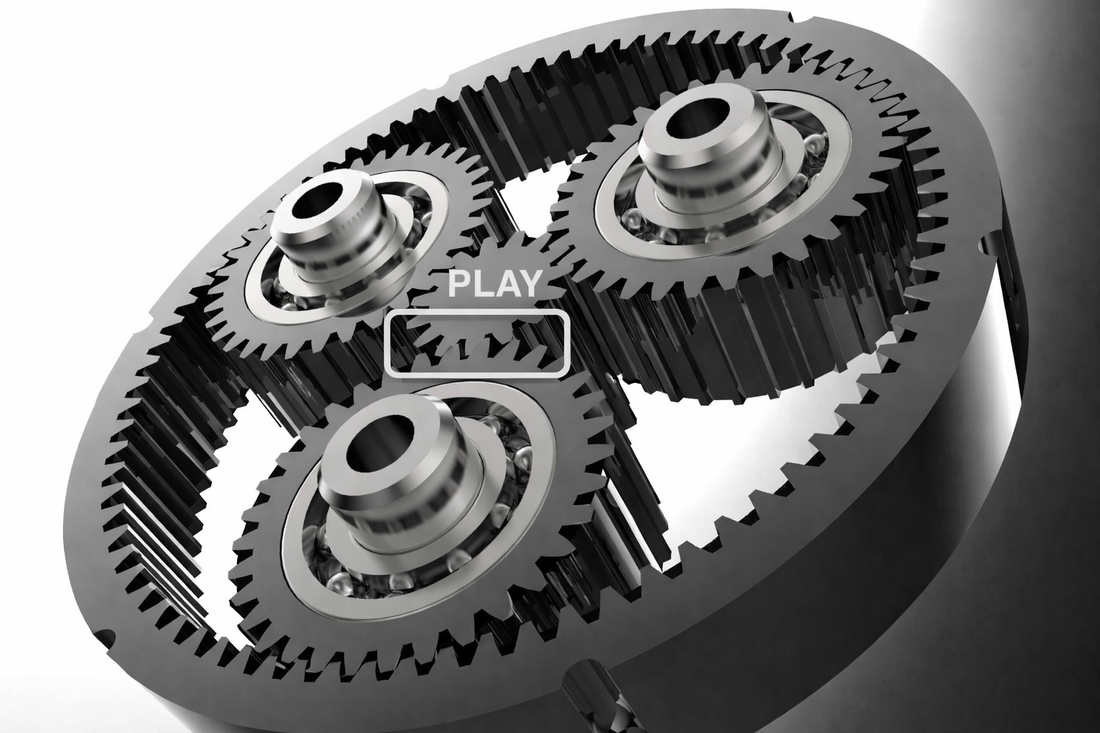

2. What Gear Play Means
Because of real-world manufacturing tolerances, all gearboxes have some amount of play (also called backlash). In practical terms, this means there can be a small rotational angle where the gears are not yet fully engaged.
When that happens, the turntable platform can move slightly back and forth before you feel resistance from the drivetrain.
How to Observe It
- Make sure the turntable is not actively rotating.
- Enable the setting that keeps the table locked when idle.
- Gently nudge the tabletop back and forth by hand.
- Notice the small rotational angle where it moves freely before resisting.
That free rotational angle is the play in the gearbox.
This behavior is normal for geared systems. Depending on the manufacturing process, the amount of play can vary somewhat, but it is nearly impossible to remove completely in a planetary gearbox design.
3. How Gear Play Affects 360 Shooting
Gear play becomes important when you change rotation direction before capture.
Example
If you use the Control Turntable button in Visere Captura and rotate the table counterclockwise to position the product, but then start your 360 capture in the clockwise direction, the first few degrees of commanded motion may not rotate the platform immediately.
Instead, the drive first has to take up the free play in the gearbox before the gears re-engage in the new direction.
Result: the beginning of the sequence can have inconsistent angular movement, which is more noticeable when shooting a large number of frames per full rotation.
4. How to Maximize Precision
The most effective way to improve rotational precision on Silver Series turntables with planetary gearboxes is simple:
Always turn the table in the same direction before and during capture.
Why It Works
When the drivetrain is already loaded in the same direction as your shooting sequence, the gear teeth are already engaged. That means there is no initial dead zone where the system has to remove play before the platform starts moving.
Best Practice Workflow
- Decide whether your capture sequence will run clockwise or counterclockwise.
- Use Control Turntable in Visere Captura to position the product in that same direction.
- Start the 360 capture without reversing direction first.
This becomes especially important when shooting high frame-count spins, because small angular inconsistencies are easier to see when the degree step between frames is small.
5. Enable “Lock turntable when idle” in Visere Captura
A second important tip for maximizing precision is to make sure the turntable stays held in position between movements.
How to Enable It
- In Visere Captura, click Control Turntable.
- Open the Turntable Settings dialog.
- Check the option “Lock turntable when idle”.
Why This Helps
Locking the turntable when idle helps reduce unwanted micro-movement between steps and keeps the drivetrain from relaxing when the table is stopped. This improves frame-to-frame consistency and makes it easier to maintain repeatable angular positioning.
Recommended setup: enable “Lock turntable when idle” before starting your capture sequence, then keep all manual positioning in the same direction as the capture direction.
6. Models With Different Drive Systems
Silver Jewelry Turntable
The Silver Jewelry turntable does not use a gearbox. Its platform is mounted directly on the motor stem, so there is no gearbox play to remove before rotation begins. This makes it one of the most precise turntable options for small products and fine-detail work.
Platinum Large (Mark II)
The Platinum Large (Mark II) uses a metal belt rotational system instead of a gearbox. This also avoids gearbox backlash, but belt systems should be checked over time because a loose belt can develop a small amount of play as well.
The advantage is that belt tension can be adjusted. If needed, tightening the belt can help maintain precision.
Even though belt-drive systems avoid gearbox backlash, they are not completely immune to play if the belt loses tension.
7. Practical Tips for More Repeatable Results
- Pick one shooting direction and keep it consistent. Do not position in one direction and capture in the other.
- Enable “Lock turntable when idle.” This helps maintain position between steps.
- Be extra careful on high frame-count spins. The more frames you capture per rotation, the more visible small angular inconsistencies become.
- Check for free movement before critical shoots. A quick manual nudge test helps you understand how much drivetrain play is present.
- Use the right turntable for the job. For the highest possible precision on small items, Silver Jewelry is ideal. For larger products requiring belt drive, Platinum Large (Mark II) offers a different mechanical approach.
Bottom line: planetary gearboxes are a practical way to deliver higher torque in a compact space, but for maximum 360 precision you should keep the drivetrain engaged in one direction and lock the turntable when idle in Visere Captura.
